Application of Corrugated Pipe Extrusion System in Iran HDPE Cable Conduit Factory

LangBo Machinery successfully delivered and commissioned a Corrugated Pipe Extrusion Line for an HDPE pipe manufacturer in Iran.

The production line is designed for the continuous manufacturing of HDPE corrugated cable protection conduits used in power transmission, telecommunications, and underground utility infrastructure.

The customer required a production system capable of maintaining consistent corrugation quality and dimensional control while supporting continuous operation for infrastructure projects across different regions of Iran.

With ongoing investment in power distribution networks, industrial parks, and communication infrastructure, the Iranian manufacturer expanded its production capacity for HDPE cable protection conduits.

The company supplies corrugated conduits for applications including:

• Underground power cable protection
• Fiber optic communication networks
• Municipal utility engineering
• Highway and railway cable routing
• Industrial electrical installations

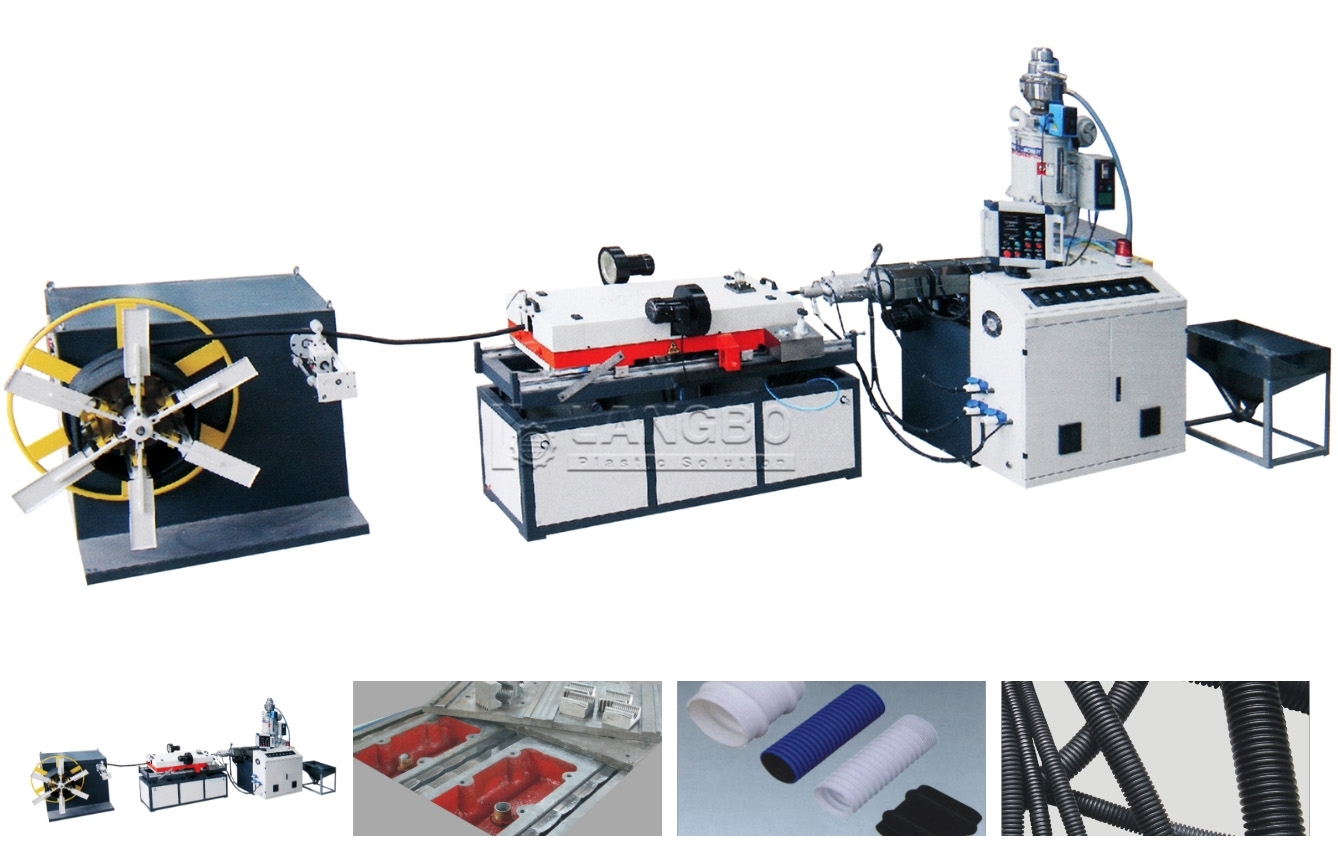

To support increasing project demand, the customer introduced a Corrugated Pipe Extrusion Line with automated extrusion, corrugation forming, and downstream processing.

Before commissioning the new production line, the manufacturer encountered several production issues during continuous corrugated conduit manufacturing:

• Inconsistent corrugation profiles during long production runs
• Dimensional variation after cooling
• Synchronization differences between extrusion and corrugator operation
• Surface defects caused by unstable melt flow
• Limited flexibility when switching between conduit specifications

For cable protection applications, these factors can affect installation compatibility and downstream assembly.

To address these production requirements, LangBo configured a complete Corrugated Pipe Extrusion Line integrating extrusion, corrugation forming, calibration, cooling, and automatic control.

The extrusion system provides stable plasticization of HDPE material before pipe forming.

Key functions include:

• Uniform melt preparation
• Continuous material feeding
• Stable extrusion pressure
• Consistent melt flow

The corrugator forms the conduit immediately after extrusion using precision forming molds.

This system helps maintain:

• Consistent corrugation geometry
• Uniform corrugation pitch
• Stable conduit structure throughout continuous production

After corrugation forming, the conduit passes through vacuum calibration and controlled cooling.

The system supports:

• Stable conduit dimensions
• Controlled cooling shrinkage
• Reduced deformation
• Improved dimensional consistency

The extruder, corrugator, haul-off, and downstream equipment operate through coordinated PLC control.

This allows:

• Stable production synchronization
• Continuous manufacturing
• Consistent product quality

Finished conduits are automatically cut to fixed lengths or wound into coils according to customer production requirements.

This supports efficient downstream packaging and transportation.

Following installation and commissioning, the Iranian manufacturer reported smoother operation throughout continuous production.

According to the production team:

• Corrugation profiles remained consistent during long production cycles
• Conduit dimensions were maintained across different production batches
• Synchronization between extrusion and corrugator improved production continuity
• Cooling performance supported stable conduit geometry
• The production line integrated efficiently into the customer's existing manufacturing process

The customer also noted that the equipment provided sufficient flexibility for manufacturing different conduit specifications required by infrastructure projects.

The HDPE corrugated conduits produced by this line are suitable for:

• Underground power cable protection
• Fiber optic communication systems
• Municipal utility engineering
• Industrial electrical installations
• Highway and railway cable routing
• Infrastructure construction projects

By implementing the Corrugated Pipe Extrusion Line, the customer achieved:

• More consistent corrugation profiles during continuous production
• Improved dimensional stability after forming and cooling
• Better coordination between extrusion and downstream equipment
• Flexible production for different conduit specifications
• Continuous manufacturing for infrastructure applications

These improvements support the customer's long-term production requirements for HDPE cable protection conduits in Iran's infrastructure sector.

This project demonstrates how a Corrugated Pipe Extrusion Line can support continuous manufacturing of HDPE cable protection conduits for power and communication infrastructure.

By integrating stable HDPE plasticization, precision corrugator forming, controlled cooling, and PLC synchronized operation, the production line helps manufacturers maintain consistent conduit geometry and continuous production performance.

As infrastructure investment continues in Iran, reliable corrugated pipe extrusion technology provides manufacturers with an effective solution for producing cable protection conduits that meet the requirements of underground utility projects.
