Short description
The PVC profile production line is widely used for producing various PVC profiles, such as PVC window&door profile, PVC ceiling panel, PVC trunking. With drawing sections of the PVC profile, tailed solutions and mould will be made.
Processing Process
The process flow of this line is PVC powder + additive - mixing-material feeder-twin screw extruder- mould and calibrator-vacuum forming table-haul-off machine-cutting machine-discharge rack.
This PVC profile extrusion line adopts conical twin screw extruder, which is suitable for both PVC powder and PVC granules. It has degassing system to ensure the excellent material plasticization. The high speed mould is available, and it can largely increase the productivity.
Specifications
| Model | LB180 | LB240 | LB300 | LB600 |
| Max width of products(mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water(m3/h) | 5 | 7 | 7 | 10 |
| Compressor(m3/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total length(m) | 18m | 22m | 22m | 25m |

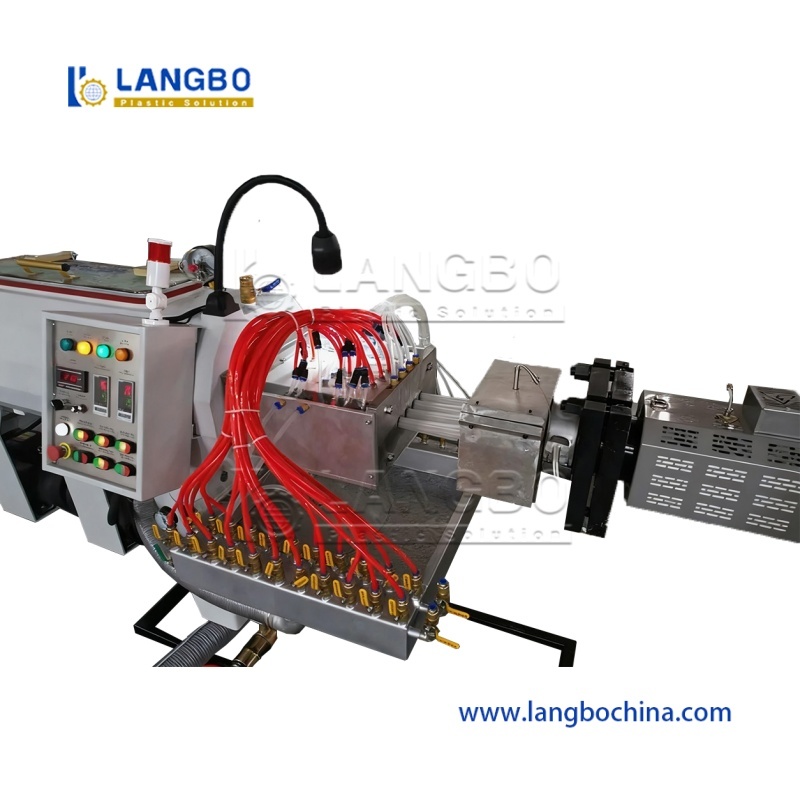

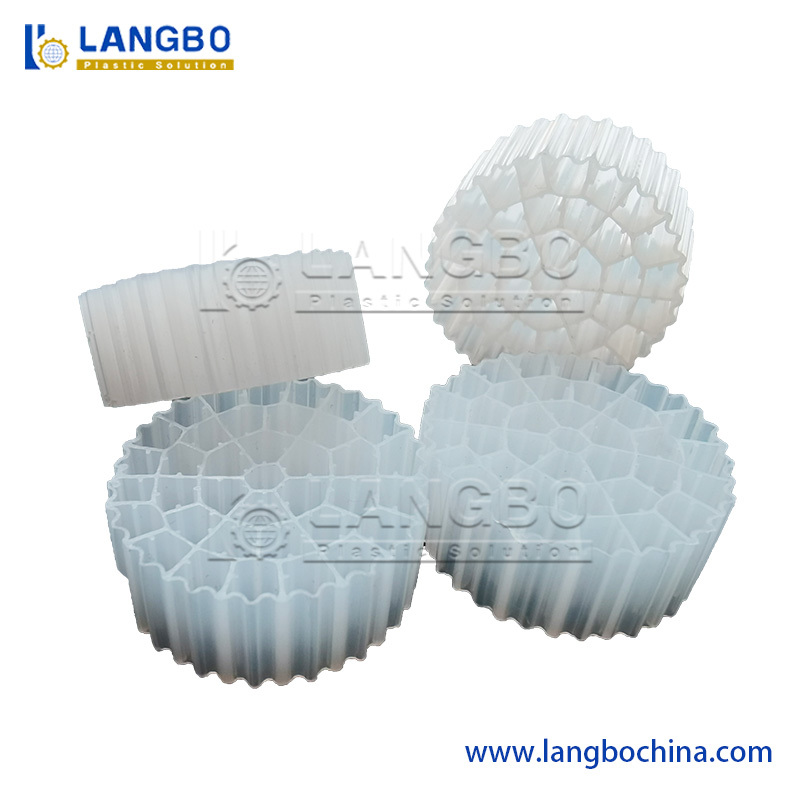

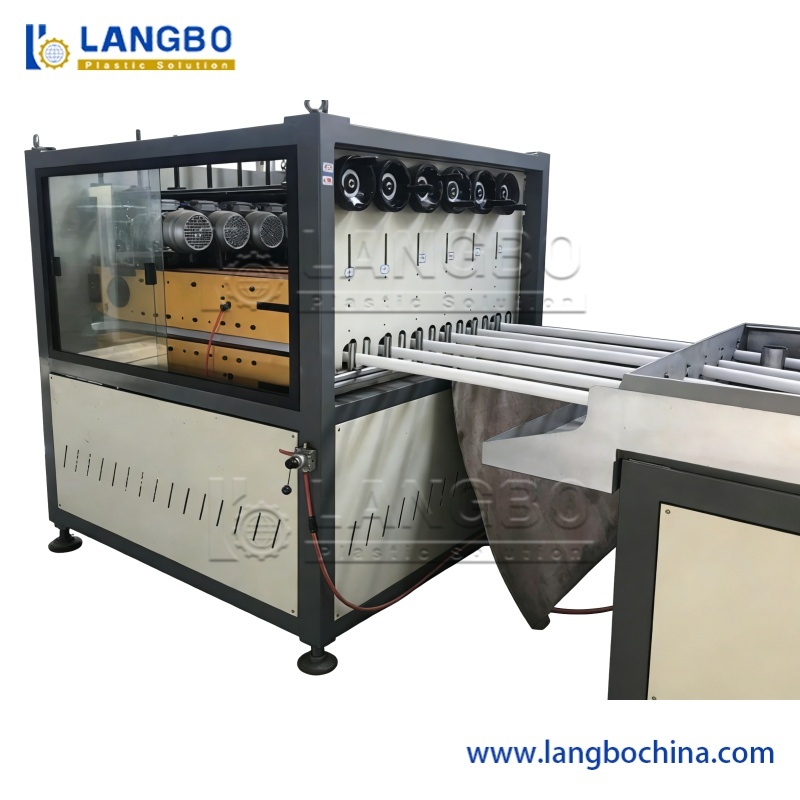

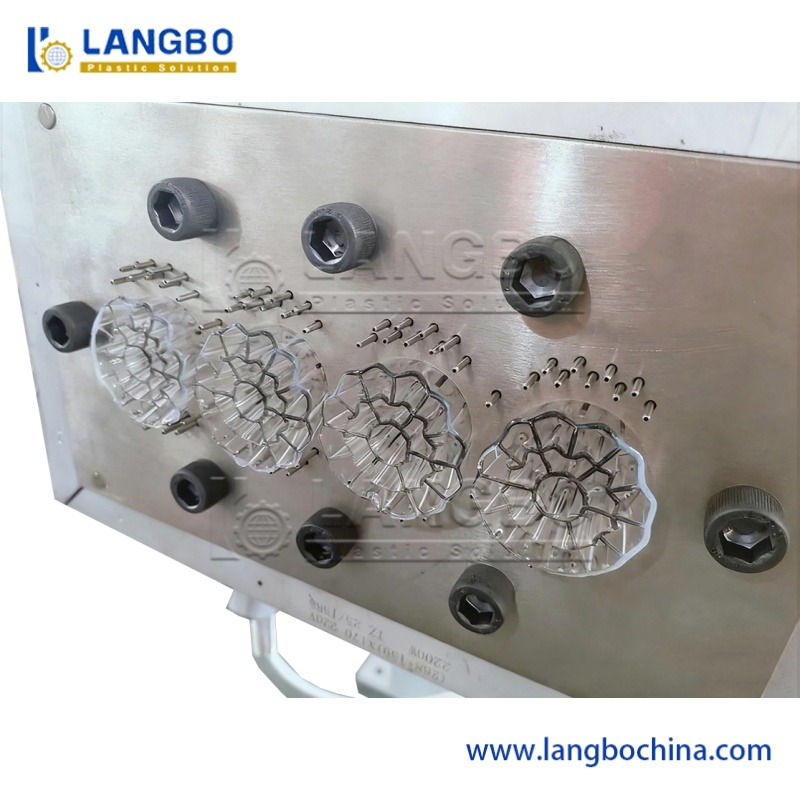

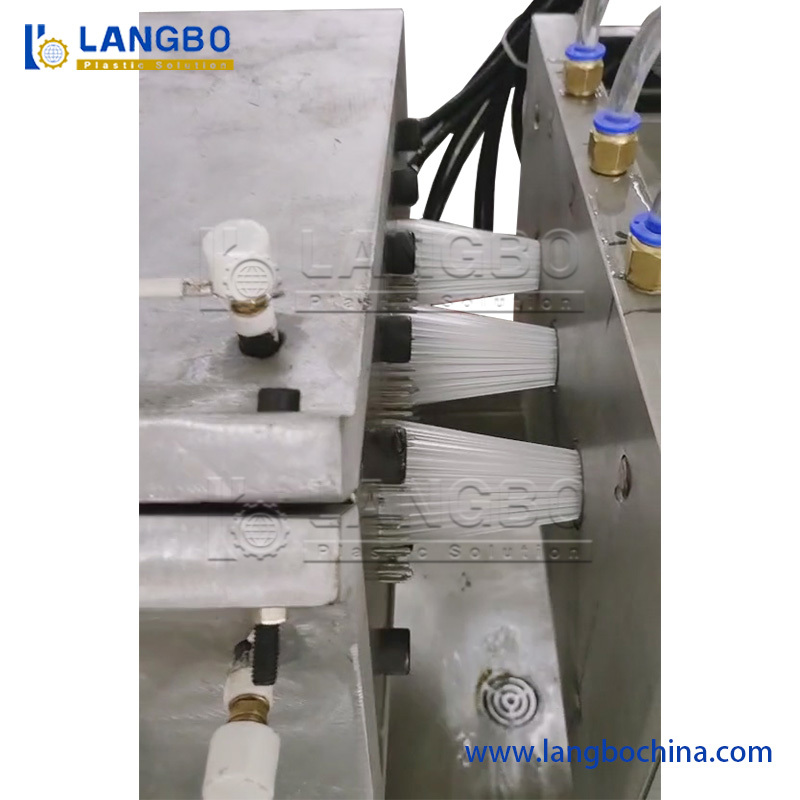

Detailed photos
