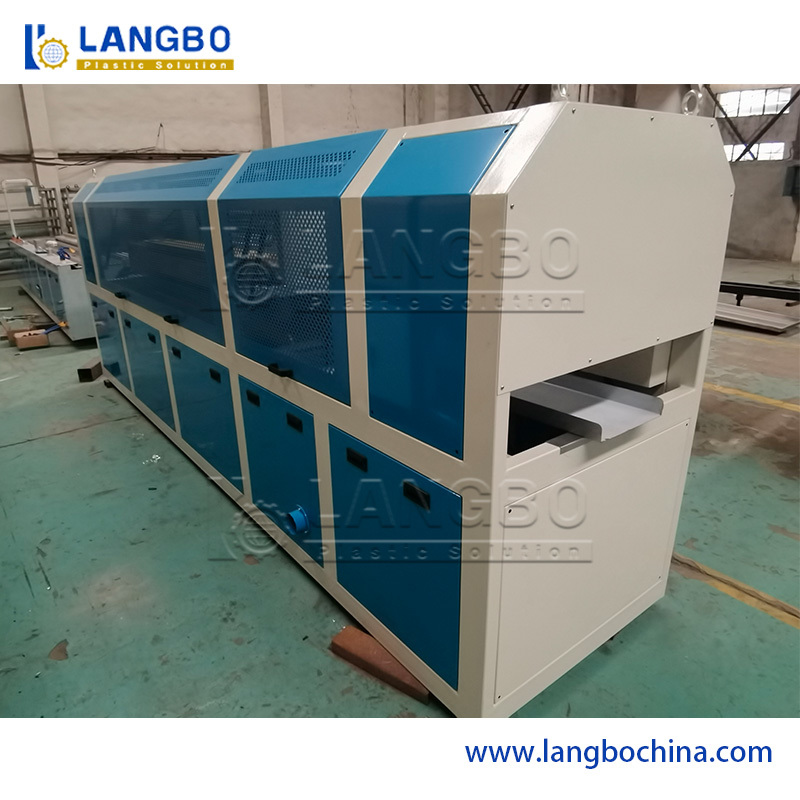

Window And Door Profile Production Line
Product Description

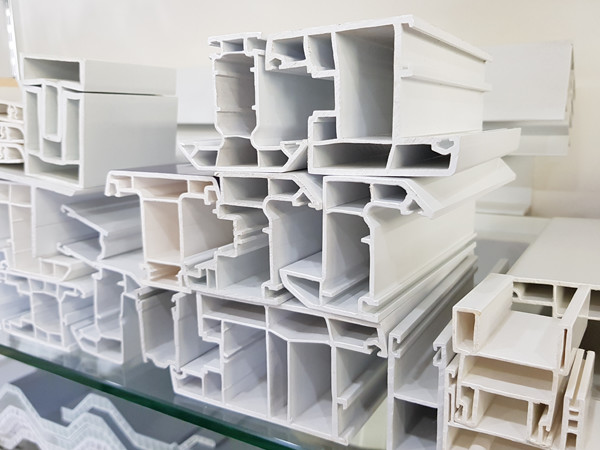

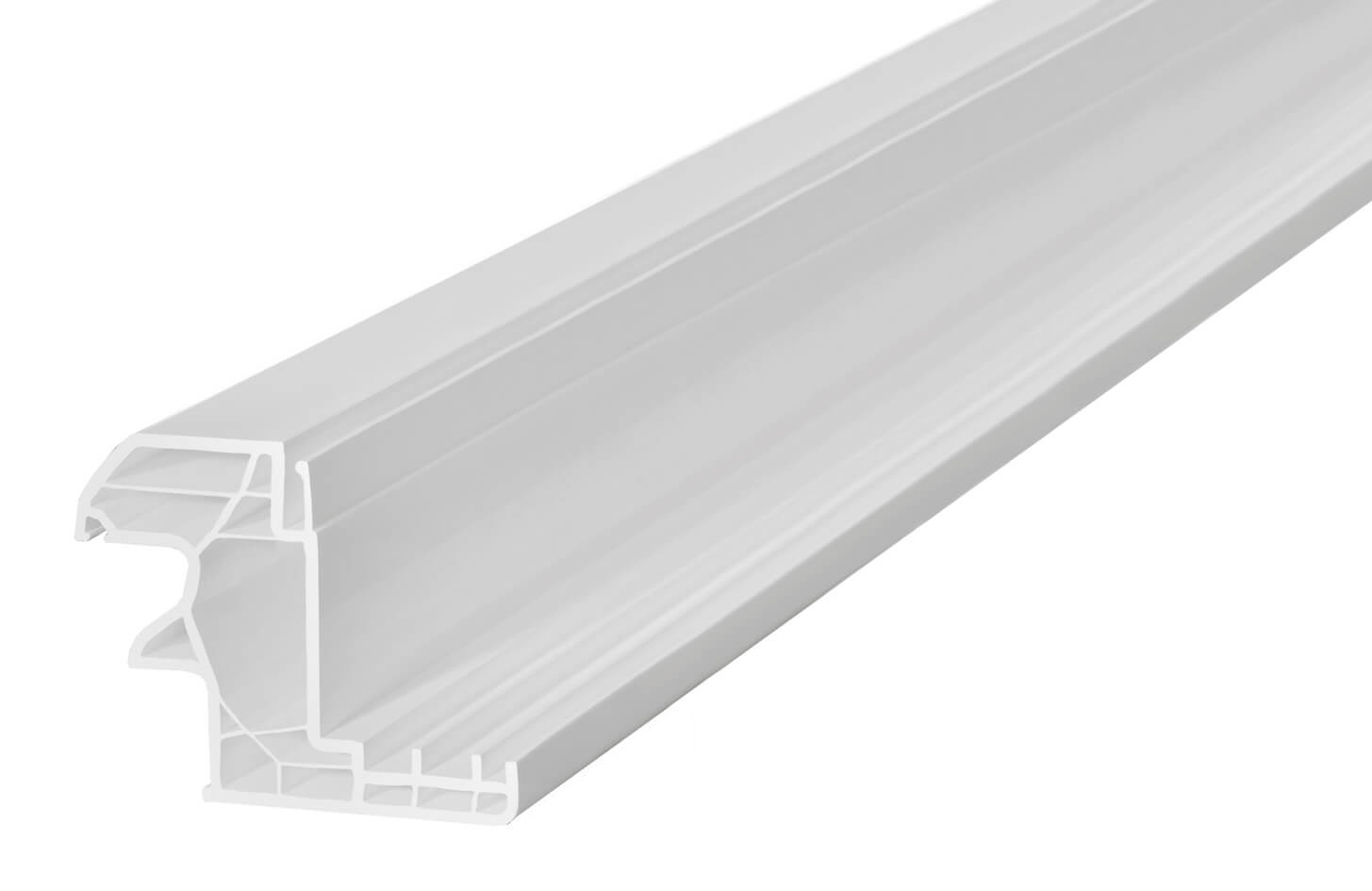

The window and door profile production line is widely used in the decoration industry. With drawing sections of the window and door profile, tailed solutions and mould will be made.
Processing Process

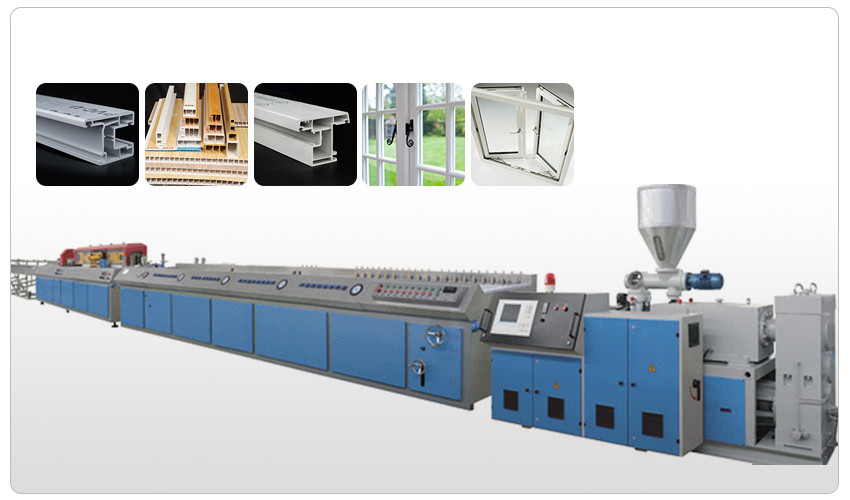

The process flow of this line is PVC powder + additive — mixing—material feeder—conical twin screw extruder— mould and calibrator—vacuum forming table—haul-off machine—cutting machine—stacker.
This window and door profile extrusion line adopts conical twin screw extruder, which is suitable for both PVC powder and PVC granules. It has degassing system to ensure the excellent material plasticization. The high speed mould is available, and it can largely increase the productivity.
Specifications
| Model | LB180 | LB240 | LB300 | LB600 |
| Max width of products(mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water(m3/h) | 5 | 7 | 7 | 10 |
| Compressor(m3/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total length(m) | 18m | 22m | 22m | 25m |
Product detail
Mould for Window and door Profile
Optimized channel design ask for high flow performance. Highly inspected by our experienced engineer, the precision and stable running of the mould is guaranteed.
Calibration table
Equipped with water circuit and vacuum system, the rapid shaping and cooling by special layout will produce excellent window and door profile. Stable steel frame and high-quality body material like SUS 304 stainless steel guarantee the machine lifetime. We offer several water separator.

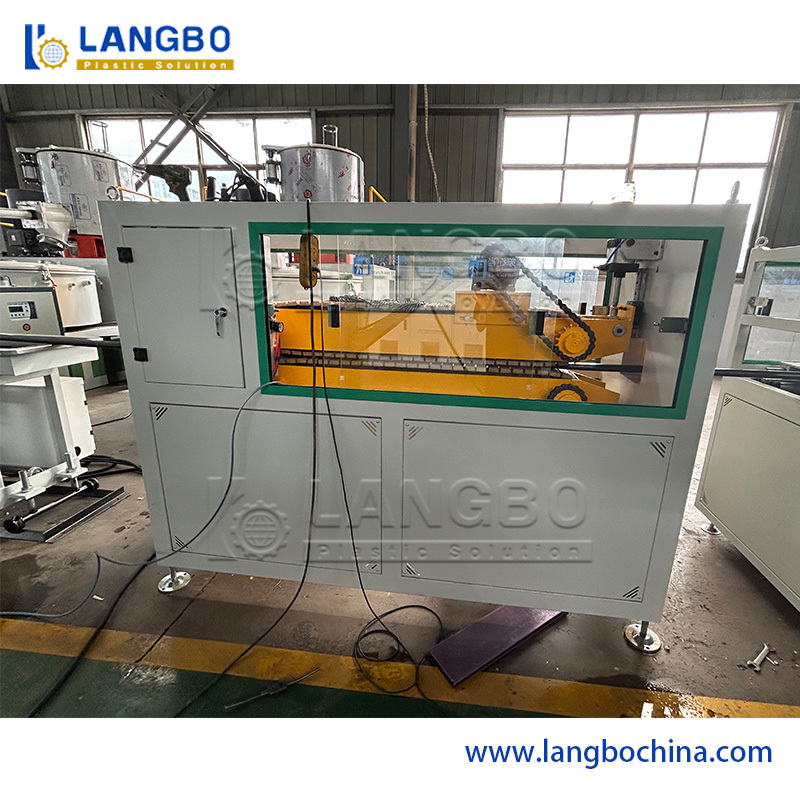

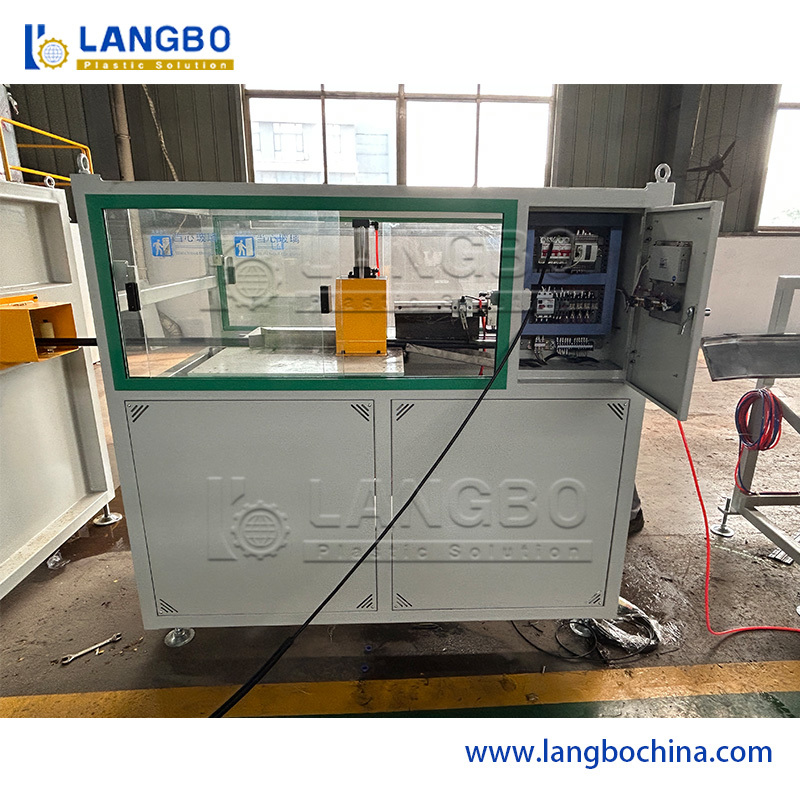

Haul-off and cutting unit
Each crawler track is driven by independent motor offering sufficient hauling force with even force distribution along crawler tracks. Highly Synchronized hauling speed and force ensures stable quality of products. We apply direct cutting for the window and door profile production line.
Stacker
We offer automatic stacker holding the produced window and door profile. It will flip periodically pulling the profiles down.
